EMD Fan Contactors
60/70/80/90 Series
Measurements on 70 Series locomotives indicate that the original OEM fan contactors are marginally rated for the operation encountered:
- FCF-B steady state current exceeds contactor rating by approximately 15 percent
- FCF-B starting surge current exceeds contactor rating by approximately 67 percent
- FCS steady state current exceeds rating by approximately 10 percent
Cooling Fan/Blower Contactor Ratings
Original Installation Versus RSA Upgrade
Existing OEM Contactor
- NEMA Size 3
- AC-3 Rating:90 amps
- Surge Rating:800 amps
RSA Contactor
- NEMA Size 4
- AC-3 Rating:180 amps
- Surge Rating:1800 amps
DASH-2
The original Square D high capacity contactor used on single speed fans on Dash-2 locomotives has long been discontinued
The OEM suggested replacement is a lower current rated component, and is subject to premature failure
Relay Systems offers a higher capacity Dash-2 fan contactor replacement which eliminates reliability issues
Cooling Fan/Blower Contactor Ratings
Current OEM Replacement Vs. RSA Upgrade
Existing OEM Contactor
- NEMA Size 3
- AC-3 Rating:90 amps
- Surge Rating:800 amps
RSA Contactor
- NEMA Size 4
- AC-3 Rating:180 amps
- Surge Rating:1800 amps
Contactors are available as individual parts or a completely assembled panel for simplified installation

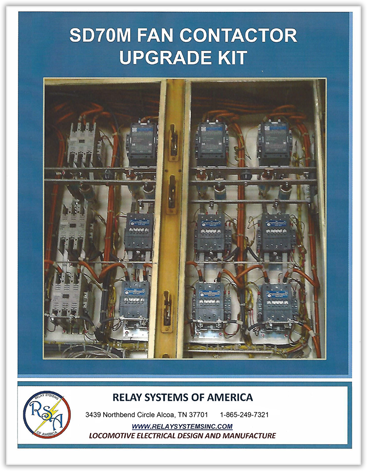

SD70M Fan Contactor Upgrade Kit
Access the full kit for SD70M Fan Contactor Upgrade Kit.
Full Specifications
